Product details:

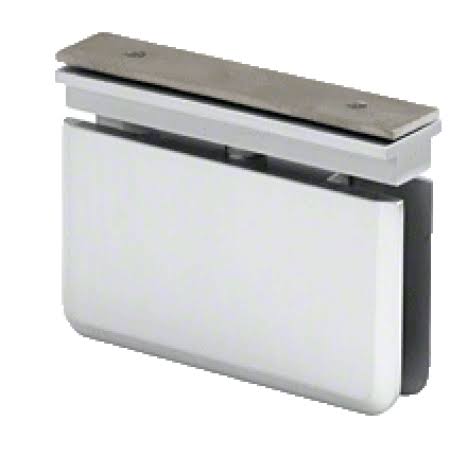

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering with four springs for maximum retention strength. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor with the EZ-Adjust Header System. Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling or floor and header. Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15 degree of closed position. Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp). Includes: Gaskets Screws and Glass Fabrication Dimensions This hinge series is patented (Patent No. 5 297 313). Custom finishes are available on request. Contact the DK Hardware Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
